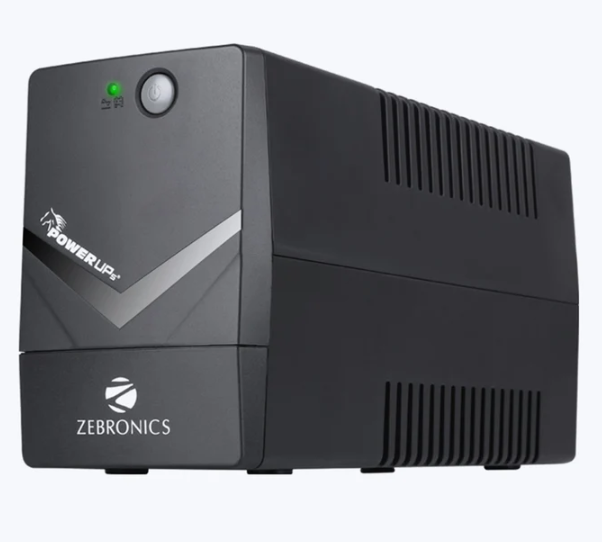

ZEB‑U1201 UPS

Specifications

Capacity

(VA/W) 1000VA / 600W

Input

Nominal voltage 220-240 VAC

Voltage range 140-300 VAC

Frequency 50 Hz

Plug type 3 Pin plug

Output

Voltage range (AC mode) 195 – 255 VAC ± 5 %

Voltage range (Batt. mode) 230 VAC ± 10 %

Frequency range (Batt. mode) 50 / 60Hz ±1%

Transfer time 4 – 8ms typ.

Wave form Simulated sine wave

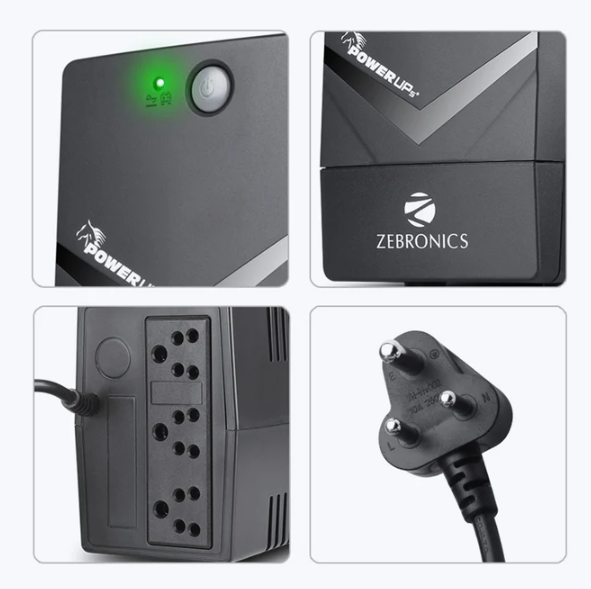

No. of output sockets 3

Battery

Battery type 12V 9Ah x 1 nos

Charging current 1A

Recharge time 6-8 hours typ.

Indicators

No. of LEDs 1 LED

AC mode Green LED glows

Battery mode Green LED blinks in an interval of 10 seconds

Alarm

Battery mode Beeping every 10 seconds

Low battery Beeping every seconds

Overload Beeping every 0.5 seconds

Fault Continuous beeping

Physical Details

Product dimension 279 x 101 x 142 mm (W x D x H)

Net. weight 5.5kg

Package dimension 340 x 150 x 230mm (W x D x H)

Environmental Factors

Operational temperature 0-40⁰C

Noise Level < 40dB
