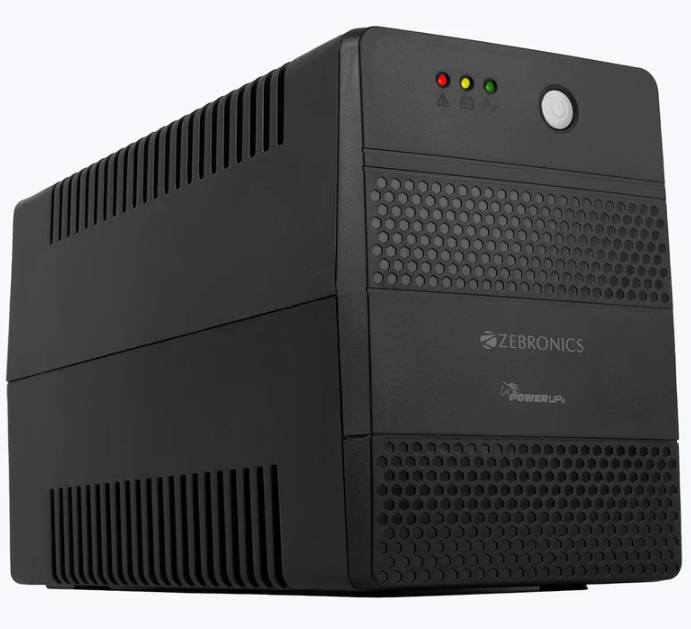

Zebronic U1205 UPS

Specifications

Capacity

(VA/W) 1000VA / 600W

Input

Nominal voltage 220-240 VAC

Voltage range 140-300 VAC

Frequency 50/60 Hz

Plug type 3 Pin plug

Output

Voltage range (AC mode) 230VAC ± 5 %

Voltage range (Batt. mode) 230 VAC ± 10 %

Frequency range (Batt. mode) 50 / 60 Hz ±1%

Transfer time 4 – 8 ms typ.

Wave form Simulated sine wave

No. of output sockets 4

Protections Overload, Short circuit, Over discharge & Over charge

Battery

Battery type 12V 7Ah x 2 nos

Charging current 1.2A

Recharge time 6 – 8H typ. (upto 90% capacity after complete discharge)

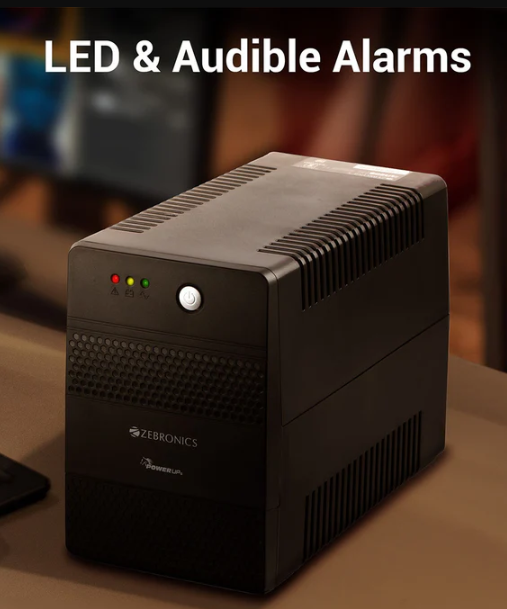

Indicators

No. of LEDs 3 LEDs

AC mode Green LED glows

Battery mode Orange LED blinks in an interval of 10 seconds

Fault Red LED Glows

Alarm

Battery mode Beeping every 10 seconds

Low battery Beeping every 1 second

Overload Beeping every 0.5 second

Fault Continuous beeping

Physical Details

Product dimension (W x D x H)
13 x 31.4 x 17.5 cm

Net. weight 7.19 kg

Package dimension (W x D x H)
36.8 x 17.3 x 24.8 cm

Environmental Factors

Operational temperature 0-40⁰C

Noise Level < 45dB

Country of Origin People’s Republic of China

Package Contents

ZEB-U1205 1U

QR code guide 1U
