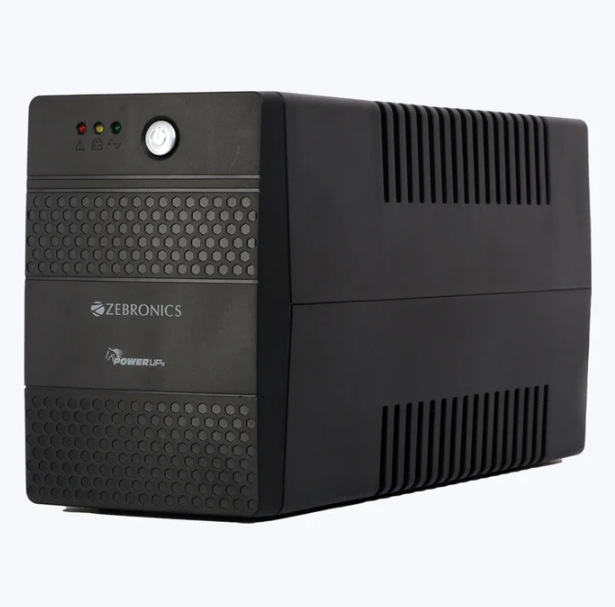

ZEBRONICS U735 UPS
₹2,999.00₹3,399.00 (-12%)
Features
Line interactive UPS
Auto restart while AC is recovering
Double Boost
Automatic Voltage Regulation (AVR)
Wide Input Range
Microcontroller Based
Generator Compatible
No load Auto Shutdown at battery mode
Specifications
Capacity
(VA/W) 600VA/360W
Input
Nominal voltage 220-240 VAC
Voltage range 140-300 VAC
Frequency 50/60 Hz
Plug type 3 Pin plug
Input Protection Internal Fuse
Output
Voltage range (AC mode) 230VAC ± 10 %
Voltage range (Batt. mode) 230VAC ± 10 %
Frequency range (Batt. mode) 50/60Hz ±1%
Transfer time 4-8ms
Waveform Simulated Sine Wave

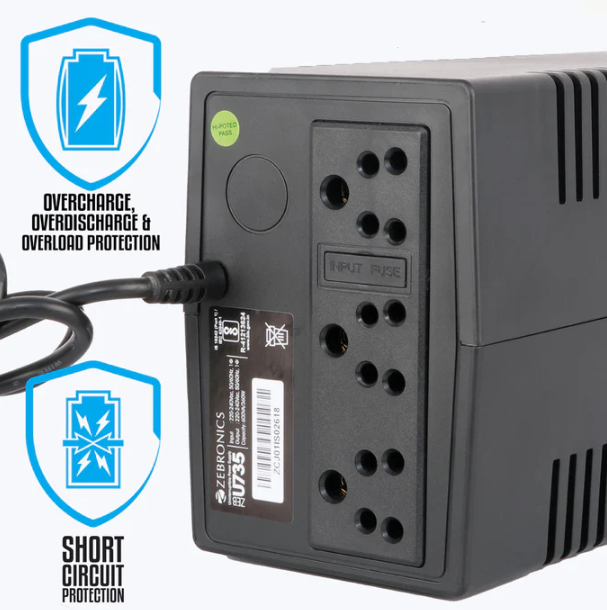

No. of output sockets 3
Protections Overload, Short Circuit, Over Discharge & Over Charge
Battery
Battery type 12V 7Ah x 1 nos
Charging current 1A
Recharge time 6-8h to charge 90% (after complete discharge)

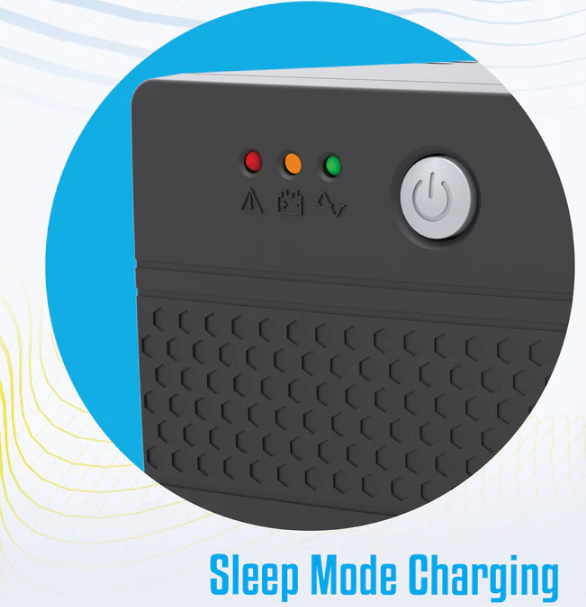

Indicators
No. of LEDs 3 LED
AC mode Green LED Glows
Battery mode Orange LED blinks
Fault mode Red LED Glow
Alarm
Battery mode Beeping every 10 Seconds
Low battery Beeping every 1 Second
Overload Beeping every 0.5 second
Fault Continuous beeping
Physical details
Product dimension (W x D x H) 101 x 280 x 142 mm
Net. weight 3.82 kg
Package dimension (WxDxH 326 x 142 x 213 mm
Environmental factors
Operational temperature 0-40⁰C
Noise level < 45dB
